| Upper die change(Using Crane hoist) |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

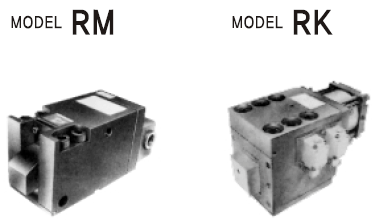

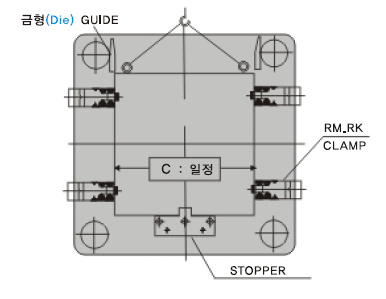

 模具宽度一定的时候，既可以使用杠杆摇臂（SWING）的RM式，也可以使用杠杆活滑动的RK式。

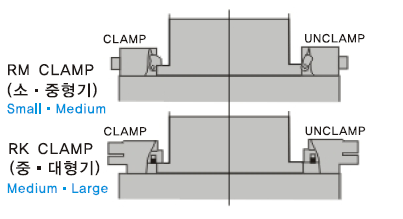

Rm式适用于中小型、Rk式适用与大中型射塑机。
|
| |
|
Suitable Clamp when Die width is consistent : Level-swing RM Type or
Level-sliding RK Type can be used.
RM Type is suitable to small·medium-sized and RK Type to
me-dium·large-sized Injection M/C.
|
|
|
| |
|
|
 |
|
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
| |
|
|
| |
|

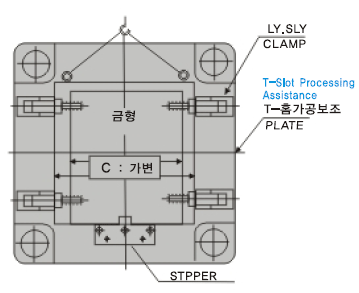

模具宽度不一定的时候，如果PLATE上有T槽，则直接使用，如果PLATE只有螺丝孔，则需要使用有T槽的辅助PLATE。
如果使用在T槽上移动的LY型，这时候如果使用自动前进后进的SLY型，则更方便。
|
| |
|
When Die Width is not consistent, it is used as it is on T-Slot-made
Plate and used on the Plate with only bolt hole attaching with the
assistant T-Slot-made Plate.

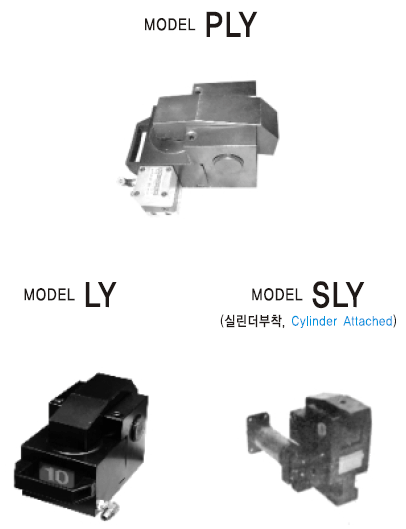

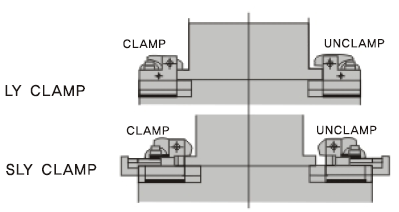

In case of using LY Type movable following T-Slot and using SLY
Type auto moving forth and back, it's more convenient.
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

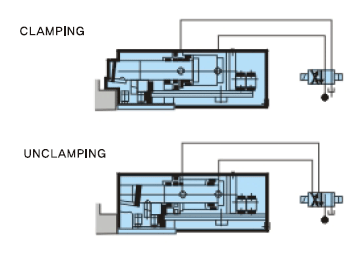

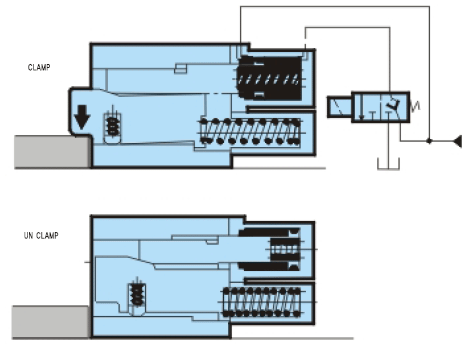

本夹模器是旋转夹模器，在油压和强力的弹簧的作用下，支撑模具的力很充分。 .
|
| |
|
This Type, of swing type of Clamp, is a Type which of Die Holding Force
is sufficiently considered & designed by hydraulic force and strong
spring.
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

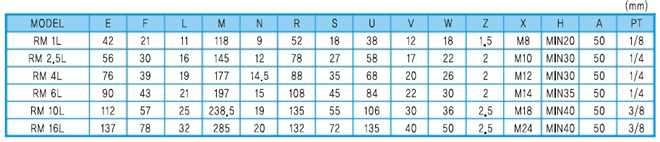

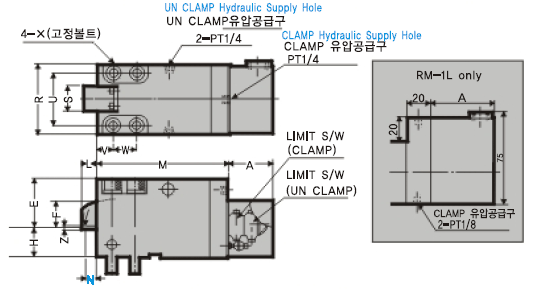

(Common Specifications)
|
RM 1L
|
RM 2.5L
|
RM 4L
|
RM 6L
|
RM 10L
|
RM 16L
|
|
(Specification)
|
|
CLAMPING FORCE (ton)
|
1
|
2.5
|
4
|
6.3
|
10
|
16
|
|
HOLDING FORCE (ton)
|
0.05
|
0.1
|
0.16
|
0.25
|
0.4
|
0.6
|
|
TOTAL STROKE (㎜)
|
3.5
|
4
|
4
|
4
|
4.5
|
4.5
|
|
CLAMPING STROKE (㎜)
|
2
|
2
|
2
|
2
|
2
|
2
|
|
SAFETY STROKE (㎜)
|
1.5
|
2
|
2
|
2
|
2.5
|
2.5
|
|
UNCLAMPING (kgf/㎠)
|
30
|
30
|
30
|
30
|
30
|
30
|
|
(Oil)
|
CLAMP(㎖)
|
15
|
41
|
92
|
163
|
298
|
520
|
| UNCLAMP(㎖)
|
6
|
11
|
28
|
48
|
87
|
143
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

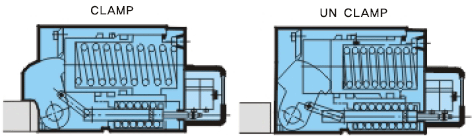

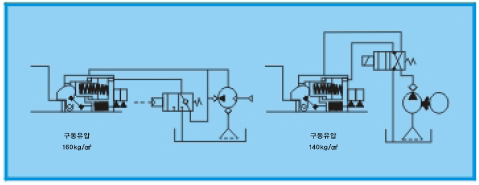

强力的夹力，即使在油压是零的时候，也具有可以充分支撑模具的安全功能，是专门为射塑机开发的高性能夹模器。
适用于大中型射塑机。
|
| |
|

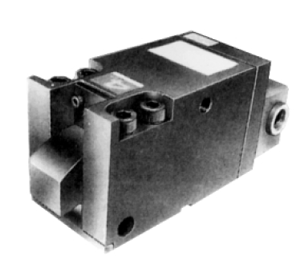

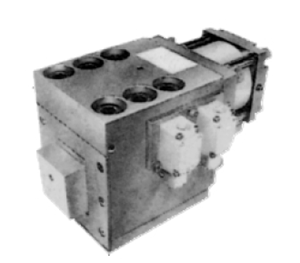

High-Capacity Clamp, of Strong Clamping Force, developed for safety
Injection M/C to strongly support Die even when Hydraulic pressure is
zero(0).
It's suitable to medium, large-sized Injection M/C.
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

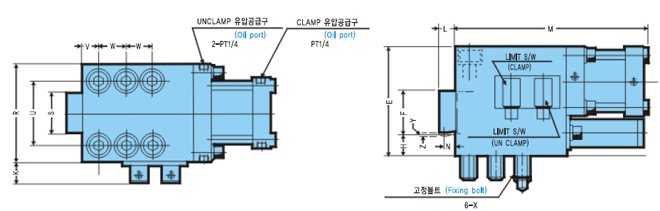

(Common Specifications)
|
RK 16
|
RK 25
|
RK 40
|
|
(Specification)
|
|
CLAMPING FORCE
|
(Hydraulic Pres.) 140㎏/㎠
|
5
|
8
|
14
|
|
HOLDING FORCE
|
(Hydraulic Pres.) 140㎏/㎠
|
16
|
25
|
40
|
|
(Hydraulic Pres.) 0㎏/㎠
|
2
|
3
|
5
|
|
TOTAL STROKE (㎜)
|
4.5
|
4.5
|
5.5
|
|
CLAMPING STROKE (㎜)
|
2
|
2
|
2.5
|
|
SAFETY STROKE (㎜)
|
2.5
|
2.5
|
3
|
|
(Oil)
|
CLAMP(㎖)
|
284
|
460
|
859
|
|
UNCLAMP(㎖)
|
173
|
277
|
507
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
 |
|
| |

|
|
| |
|
|
| |
|
|
| |
|
|
| |
|

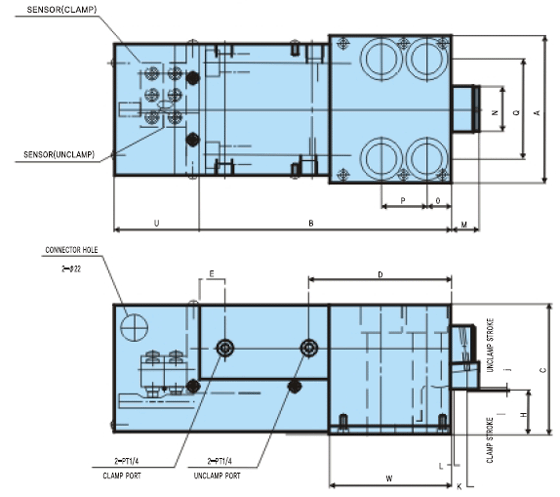

(Common Specifications)
|
WL 2B
|
WL 4B
|
WL 6B
|
|
(Specification)
|
|
(Test Pressure) (kgf/㎠)
|
210
|
|
(Max, Working Pressure) (kgf/㎠)
|
140
|
| (Max, Holding Force) (ton) |
2
|
4
|
6
|
| (Max, Clamping Force) (ton) |
1
|
2
|
3
|
| (Die Height) (H) |
25
|
30
|
35
|
|
(Required Oil) (㎖)CLAMP
/UNCLAMP
|
34
/20
|
61
/37
|
83
/52
|
|
(Working Temperature) (℃)
|
-5~60℃
|
| (Working Oil) |
(General Hydraulic working oil)
|
| (Micro Switch Type) |
KH-9015-PB(S) MAKER:KUN HUNG
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
