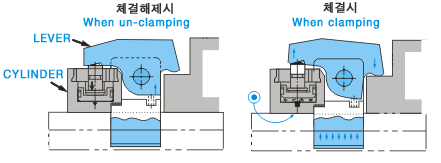

LY式包括T槽手动移动式和锭脚固定式两个种类。 缸桶和控制杆分离，T槽受到的力均匀。     不会发生T部位的一个方向磨损，夹模器的允许公差稳定。 模具内没有U槽也一样使用。   LY type includes T-Slot manual  moving type and bolster fixing type. Cylinder and Lever are divided and the same force is applied to the slot.     There is no abrasion to only either one parts and the allowable tolerance of     clamping is stabilized. With no U slot in the die, it's possible to use
	① Named clamping Force 2 2tons 4 4tons 6 6tons 10 10tons 16 16tons ② Method of established T (T-Slot Moving Type) F (Bolster Moving Type) ③ (Die Height) : H(mm)

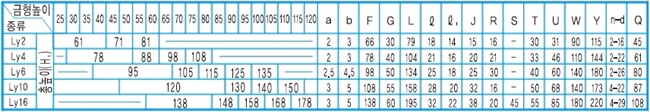

	(Specification)/ (Kind) LY2 LY4 LY6 LY10 LY16  Test Pressure(kgf/cm2) 275  Max Pressure(kgf/cm2) 185  Common Clamping Force(ton) 2 4 6 10 16  Stroke(mm) 5 5 7 8 8  Required Oil(ml) 6.8 12.5 25.8 59 80.5  Working Temperature(℃) -5~60  Note①Weight:(kgf) 2.8 4.8 9.8 15.1 25.4 (Note①: Weight when H=50mm)

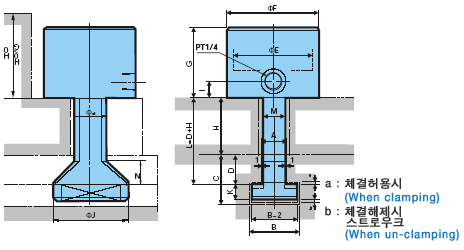

	(Dimensions of T-Slot) (Clamp is dimensions of T-Slot) Be sure to indicate the dimension of T-Slot,(Indicate the dimension of D by the unit of tolerance 0.1mm, Accordingly the dimension should be D±0.1)

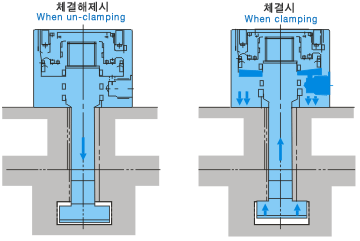

	T槽手动移动式 安装模具的时候，面积大，不会划伤模具表面或者使模具变形。 模具要有U槽。   T-Slot manual moving type system. As the wide area is allowed when clamping Die, there not bear any scratch or      crush on the surface. There should be U slot in Die.
	① Named clamping Force 2 2tons 4 4tons 6 6tons 10 10tons 16 16tons ② Total Height of when clamping (mm)

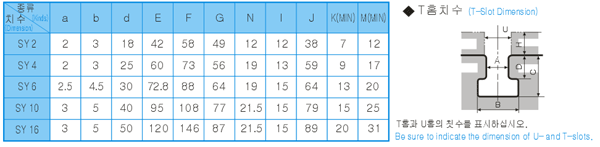

	Specification/Kinds SY2 SY4 SY6 SY10 SY16  Test Pressure(kgf/cm2) 275  Max Pressure(kgf/cm2) 185  Common Clamping Force(ton) 2 4 6 10 16  Stroke(mm) 5 5 7 8 8  Required Oil(ml) 6.8 12.5 25.8 59 80.5  Working Temperature(℃) -5~60  Working Oil 일반유압 작동유  Note①Weight:(kgf) 2.8 4.8 9.8 15.1 25.4 Note①: Weight when L=100mm
